HEAT CUTTER NHC-1 : Videca Tool
Electric heating tool made by ViDECA Corporation Heat cutter

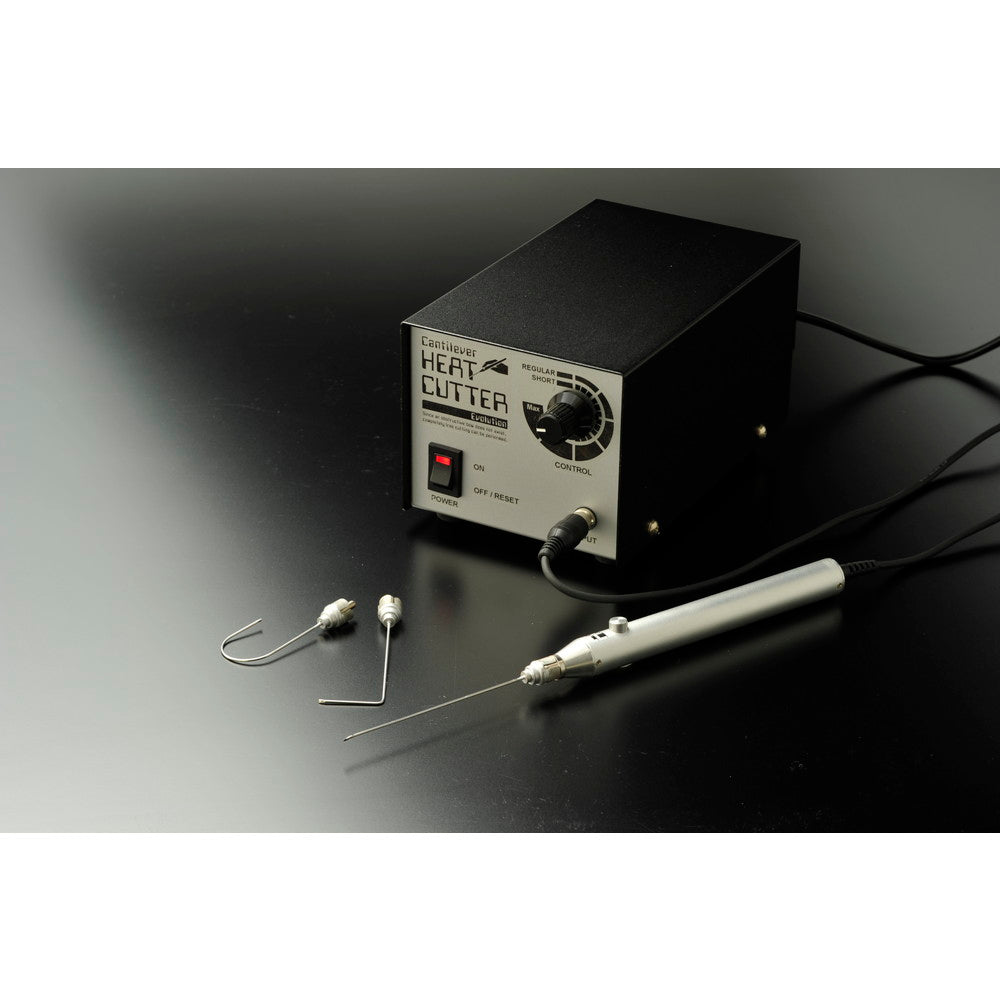

Contents: Power pack (power supply unit), needle holder, heat needles (one each of three types: straight, U-shaped, and L-shaped)
A strong ally in creating the basic shapes of diorama landforms and seascapes!
This tool can be used for processing styrofoam and other foam materials.
Cutting, shaving, and digging can be performed as naturally as drawing with a pen.
Unlike ordinary styrene cutters, which have a nichrome wire stretched over a thread saw-type bow, this cutter employs a unique cantilever (single-point support) structure called the heat needle.

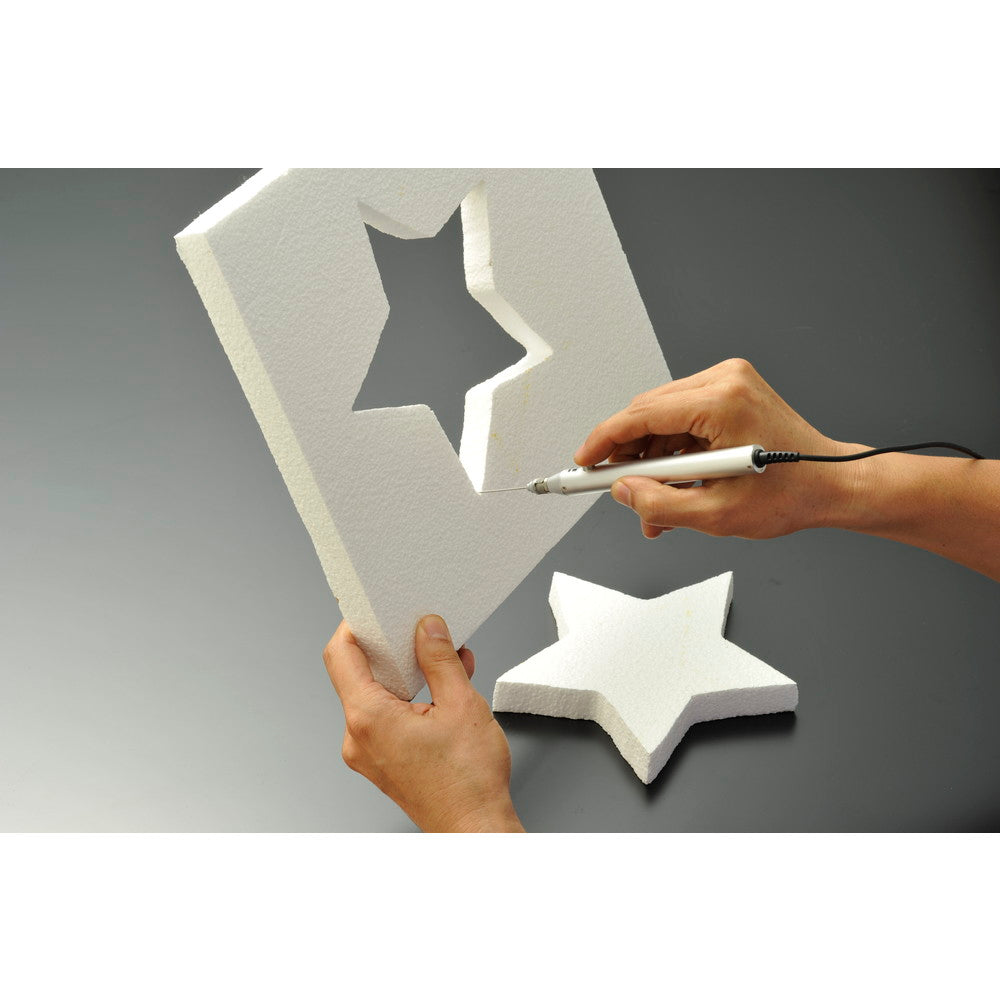

It is easy to drill holes in the center of large boards that would otherwise be restricted by the depth of the bow-shaped arm.
By replacing the straight needle with a U- or L-shaped needle, non-penetrating operations such as grinding and digging can also be performed.
Information editing: Sakatsu Gallery
YouTube Cutting out the letter "Pi" in katakana (video production: ViDECA)
Unique cantilever (single point support) structure of the cutter section

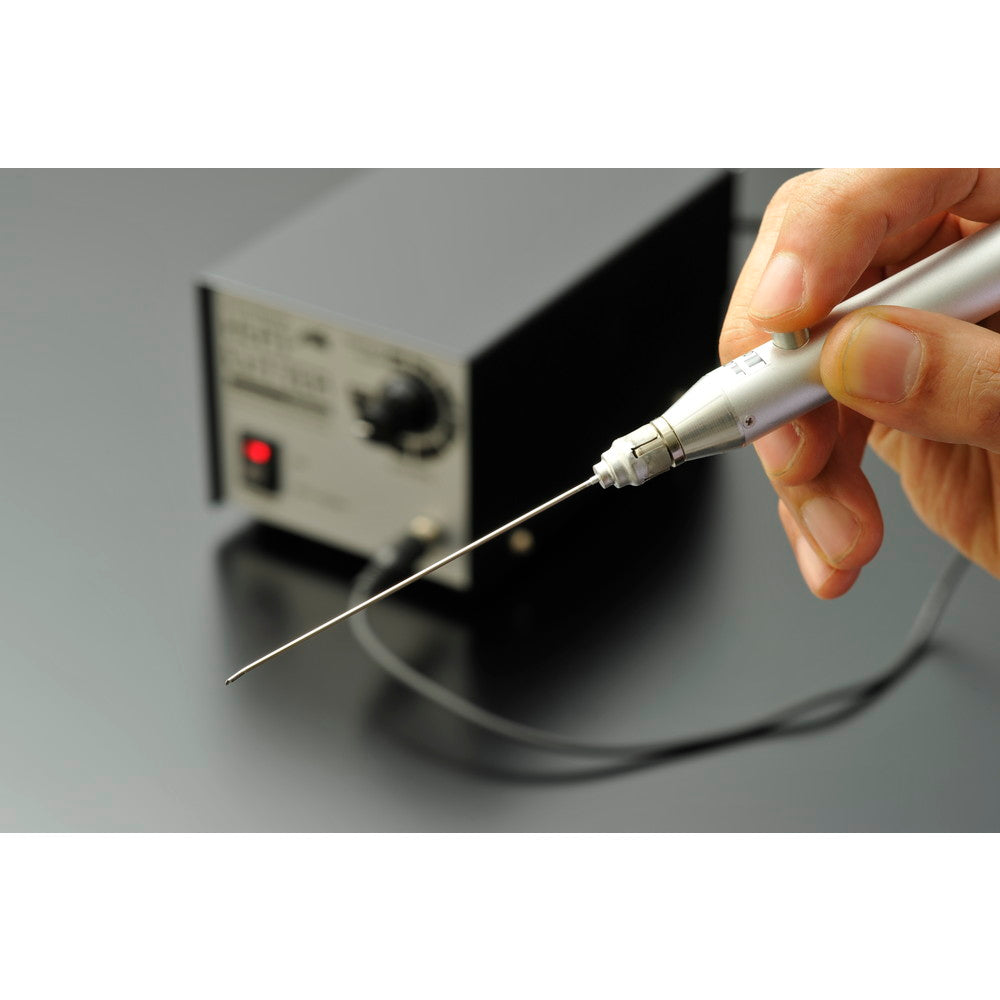

The most distinctive feature of the HEAT CUTTER is the cantilever (single-point support) structure of the cutter section. The cutter part, called "heat needle," is made of thin stainless steel and reaches cutting temperature in about 2 seconds when the switch in the holder is pressed, allowing the user to work as naturally as if drawing with a pen.

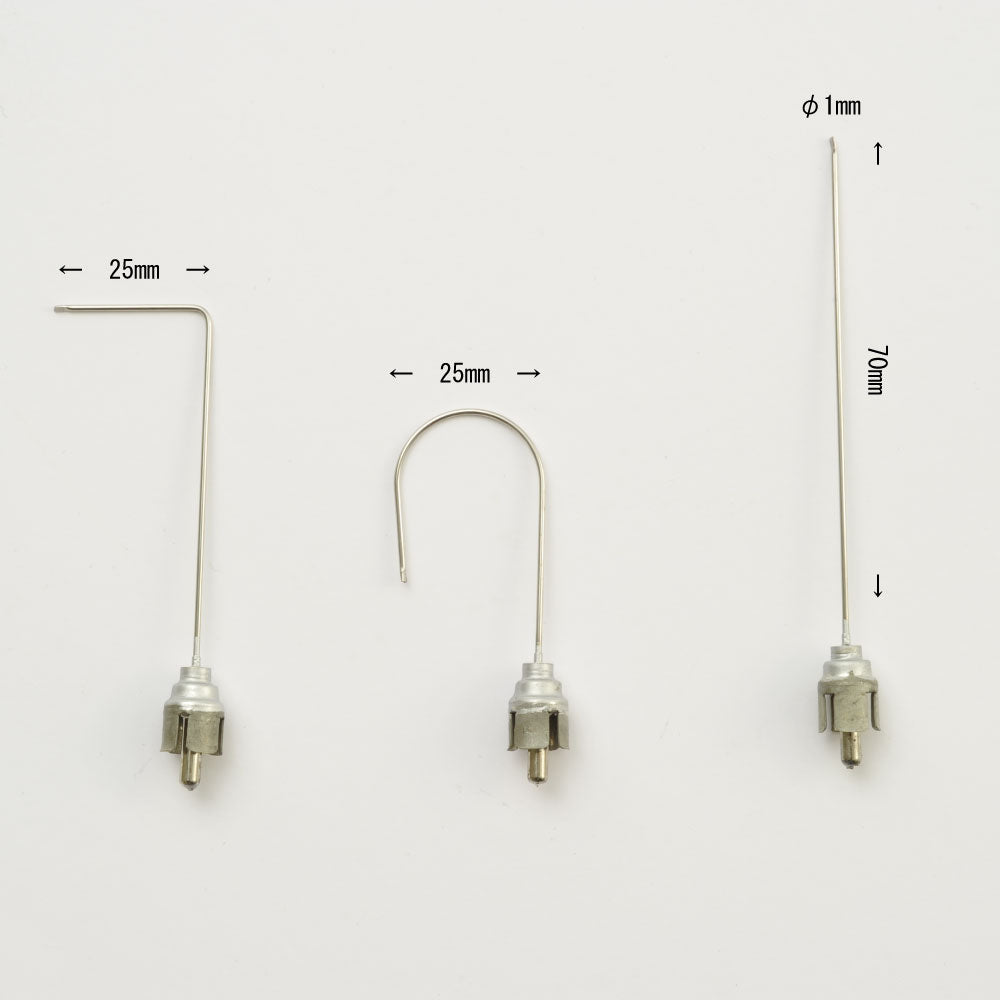

The standard-length hight needles have an effective length of 70mm for the cutter section that can be cut, and three types of set accessories are available: type-S (straight), U-shape, and L-shape.
type-S(Straight):Basic straight type.

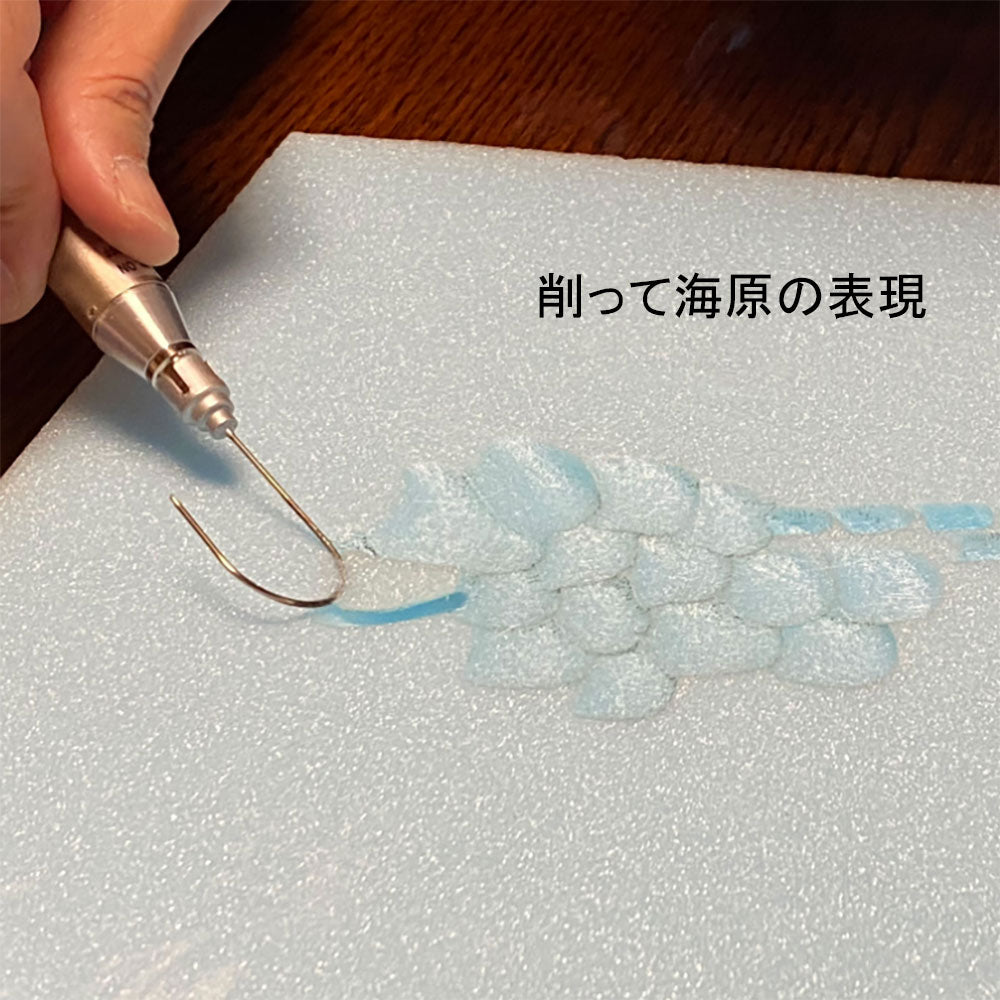

U-shape: 25mm diameter U-shape for engraving.

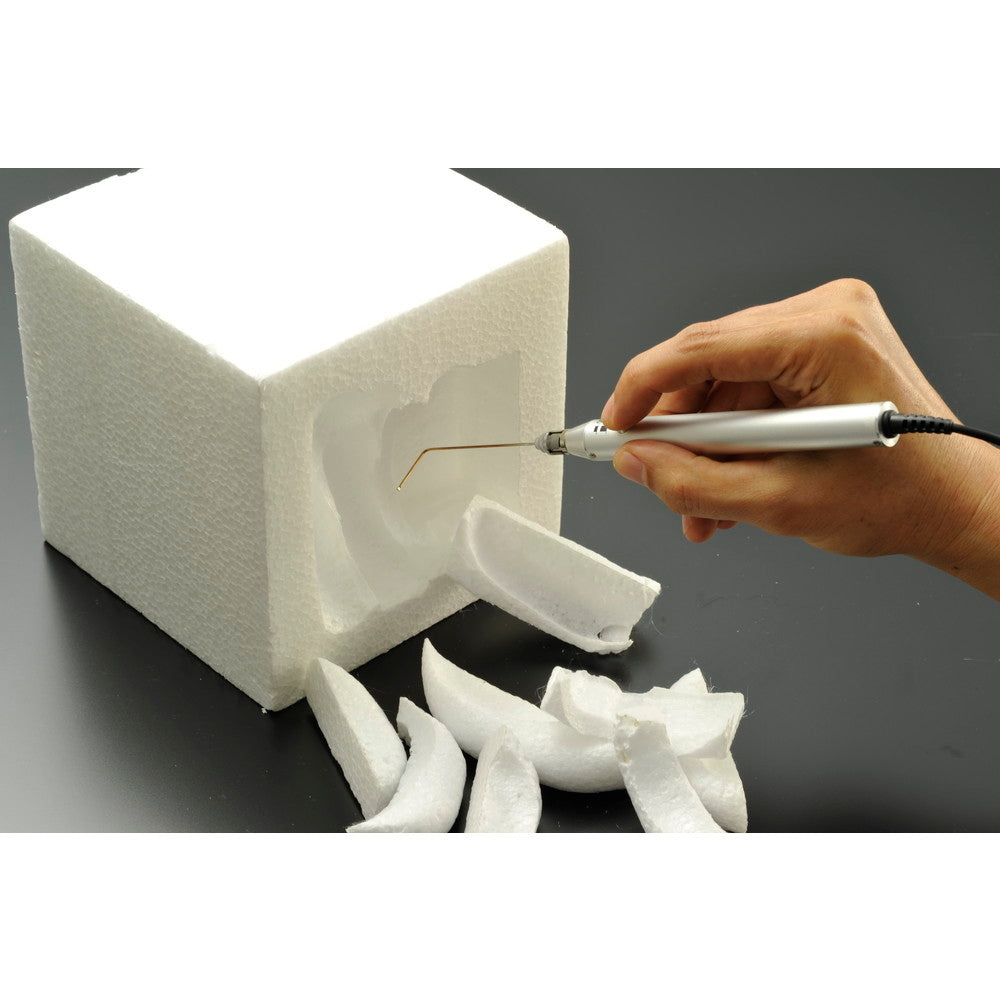

L-shape: The L-shape tip is bent at a right angle for corner removal.
Heat needles with single-point support structure and high degree of freedom
Unlike the general styrene cutters with a nichrome wire stretched across the bow of a thread saw, the depth of the bow-shaped arm does not limit the cutting range, so the target material can be cut freely, even from the middle of a large board, as if drawing a line with a pen touch from any desired location.
Also, as the nichrome wire heated by energizing softens, it is subject to tension from the bow arm and gradually becomes stretched, which has the weak point of breaking the wire or causing the cut surface to deflect due to insufficient tension, but the Hite needle is made of rigid stainless steel and almost no deflection occurs, so that a distortion-free However, the rigid stainless steel of the Hytte needle hardly causes deflection, resulting in an accurate, distortion-free cut surface.
Standard accessory "U-type" and "L-type" hight needles enable a wide variety of processing.

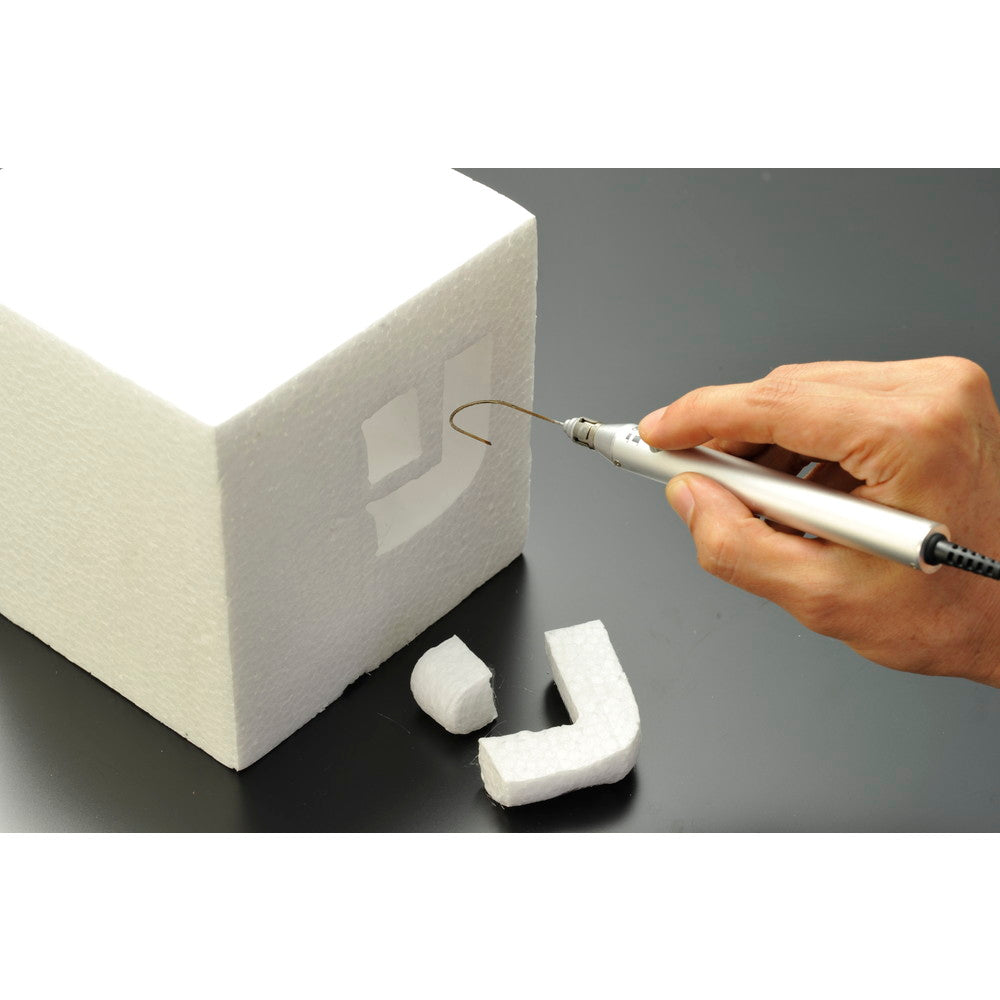

The cantilever structure not only cuts, but also allows for non-penetrating machining, which was previously difficult. For example, blocks can be carved from three sides to easily create buffers to protect corners.

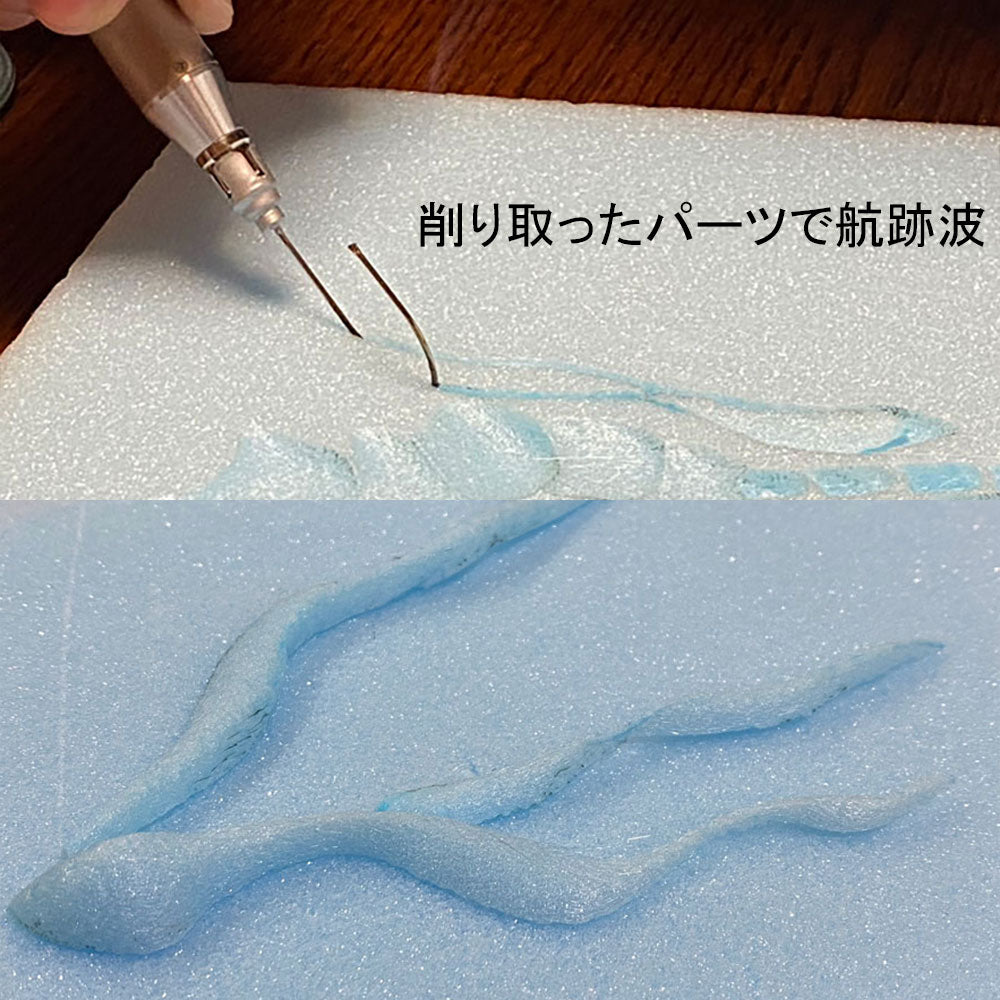

In addition to the "straight" needle, the standard "U" and "L" type heating needles included in enable grooving and shaving of the material, which are impossible with a bow-shaped styrene cutter, and thus enable a variety of expressions, such as a concave center on the cut lettering.

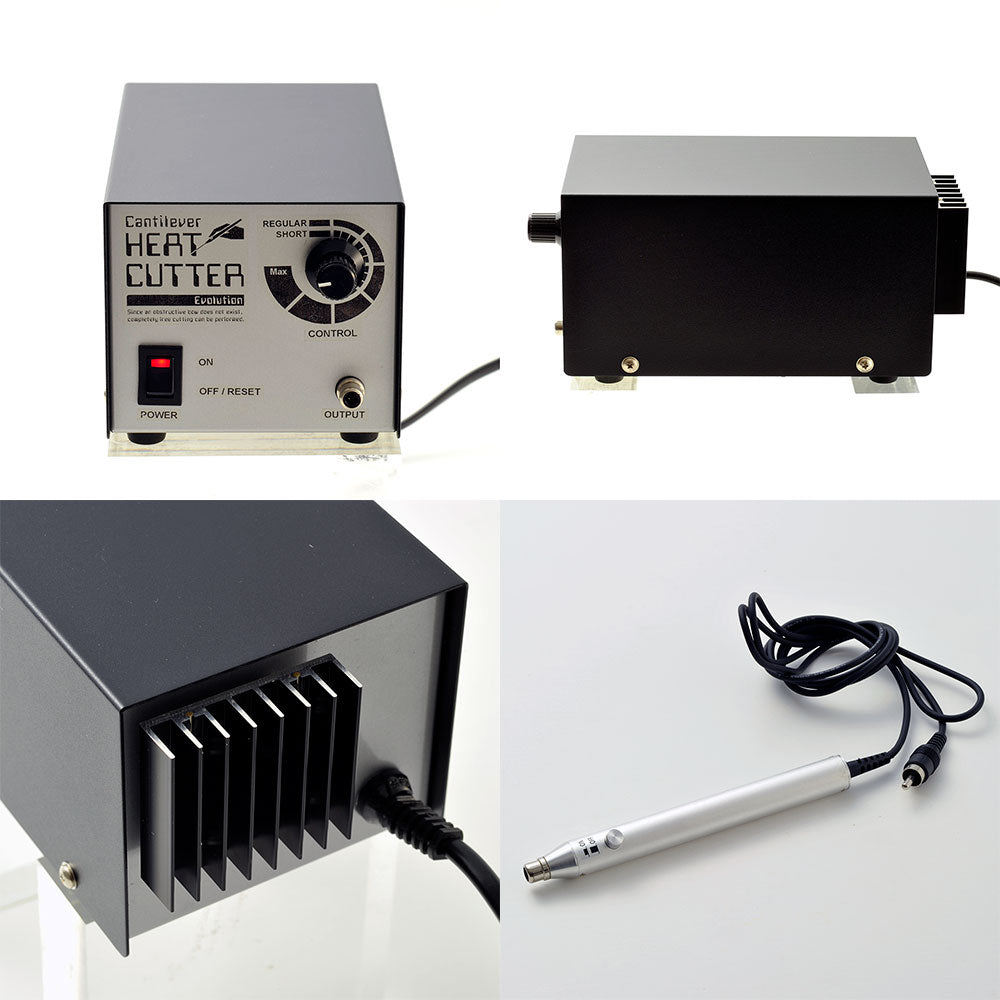

The power pack has an infinitely variable temperature control knob.
The cutting speed can be controlled according to the material and processing method, for example, at a lower temperature for fine processing and at a higher temperature for hard, hard-to-melt XPS.
