1.6x0.8mm chip LED, red, 2pcs : Sakatsuo Electronic Parts Non-scale 2203
Electronic parts made by Sakatsu, non-scale
LED Standard

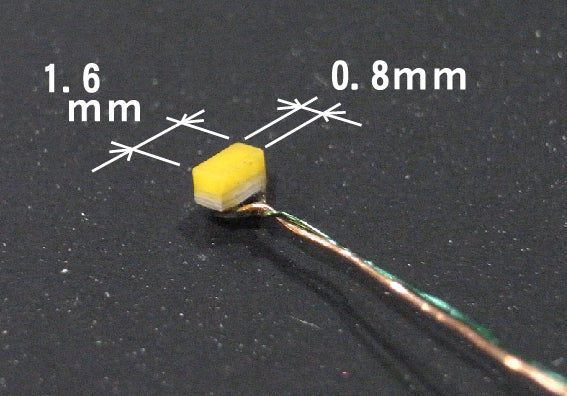

Chip size: 1.6mm x 0.8mm
Suitable voltage: 1.95V to 2.0V
Suitable current: 20mA max. 8.5mA to 10mA
DC only
Lead wire: Copper is positive, green is negative
Specifications are subject to change without notice.
Information edit: Sakatsu Gallery
Our original tiny chip LED's in red, 2 pieces.
Optional PCB
"Always On Basic Board"
"Flickering lights basic board"
Optional Power Supply
"Battery Case"
"AC adapter"
For use with model railway vehicles
"Micro Control Board"
"LED Light Control Board"
