USB powered fog generating module : BitTradeOne Electronic parts : Non-scale MMSTGN
BitTradeOne Electronic Parts Non-scale
This is a device that vibrates water finely by ultrasonic waves and atomizes it into a mist. It can be used for various purposes, such as for filming, smoke effects in dioramas, etc., depending on your ideas! (Water droplets will form if you keep spraying the same spot.)
Caution
Please use a standard 5V USB charger or mobile battery, and be sure to connect it with the included USB cable.
Ultrasonic transducers and water wicks are consumables. When they deteriorate, please purchase them separately.
Basic Specifications
External dimensions of control board: W19 x H69 x D30 mm
Weight: Approx. 40g
Generator Ultrasonic transducer: W16mm, 0.7mm thick (circular)
Water supply core cover: W24 x H38 (circular assembly type)
Driving frequency: approx. 108kHz
Power: 1.5 to 2W
Lead wire length: Approx. 300mm (including relay wire)
Power supply: 5V USB Type-C

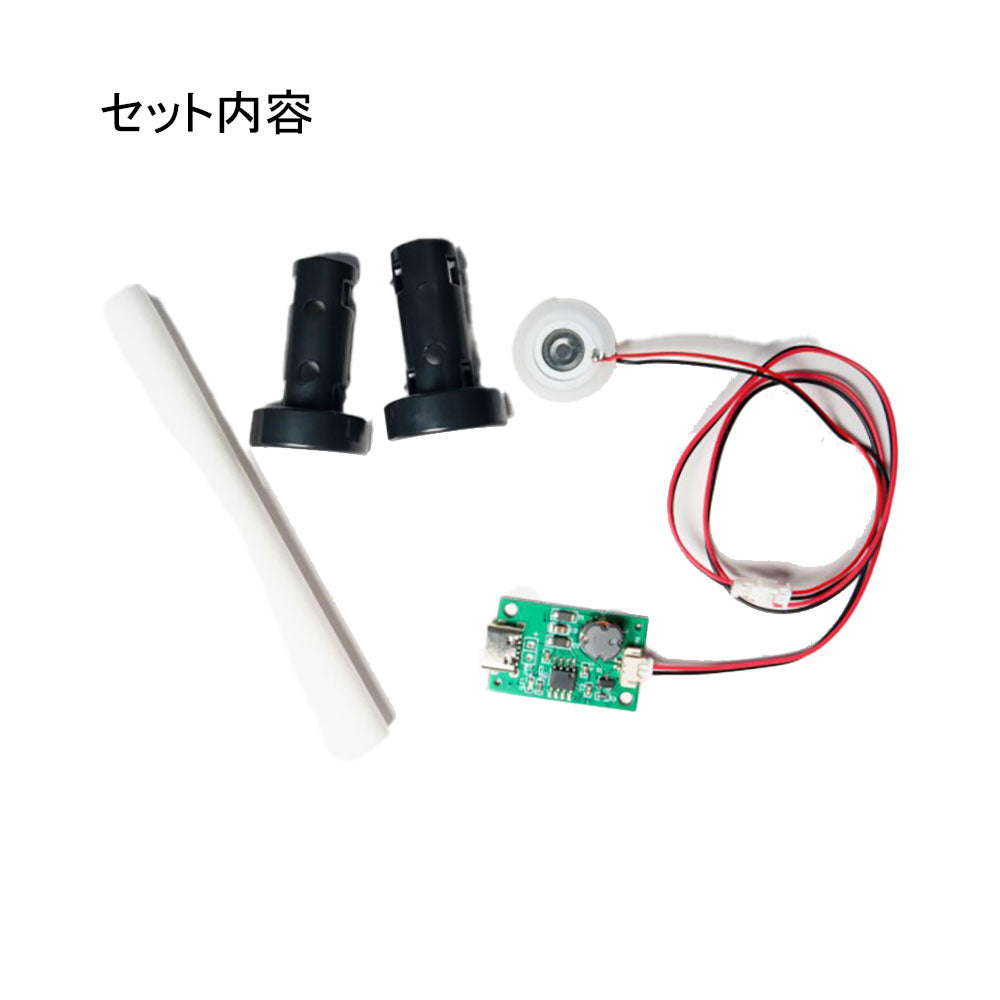

Contents: 1 main unit, 1 water wand, 1 set of water wand cover, 1 USB cable for power supply, instruction manual, warranty card (located on the back of the package)
Information editing: Sakatsu Gallery
A new type of goods for photography that are easy and simple to use with USB Type-C power supply are now available.
Ultrasonic mist particles are only a few microns in size and can be used as simple smoke and fog, making them effective for photographing small objects.
Unlike ordinary smoke machines, it is small and safe because it does not use a heat source to generate the fog, and can be easily used near heat-sensitive materials such as flammable subjects and models.
No need to worry about running costs as water is used for atomization instead of a special liquid. It also reduces the impact on the throat and the room.
The transducer itself, which is the fog generating part of , is small enough to be incorporated inside a model or diorama.
offers two ways of spraying: with a water core or with a transducer only.
for ultrasonic transducers only
Mist is generated when placed on a sponge or other object moistened with water.

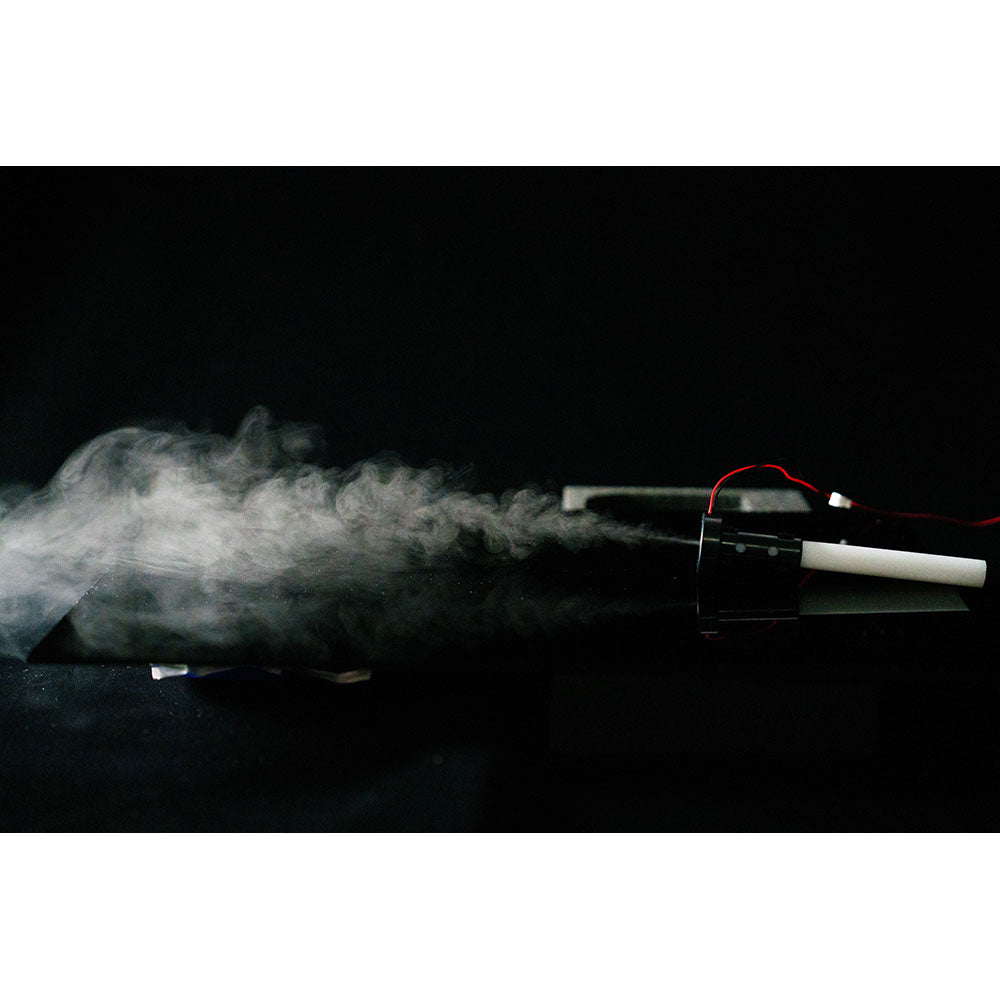

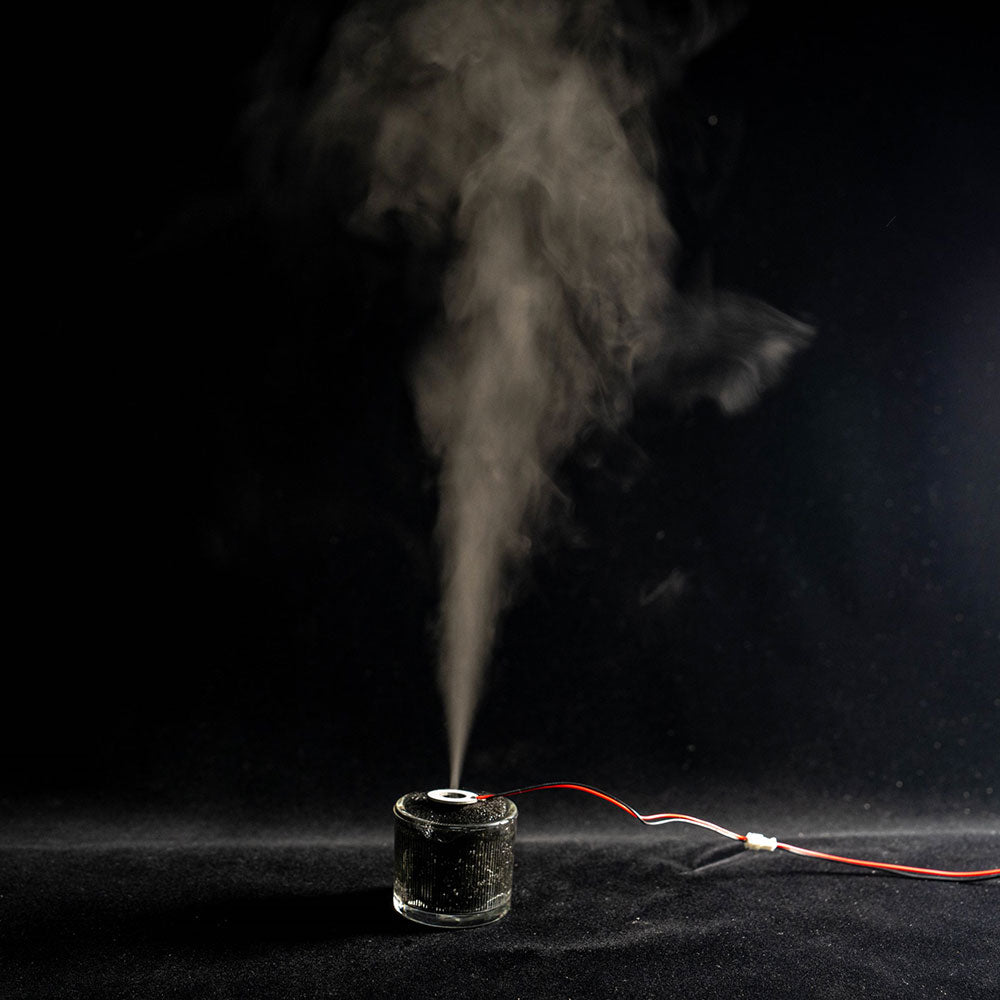

when using water supply core

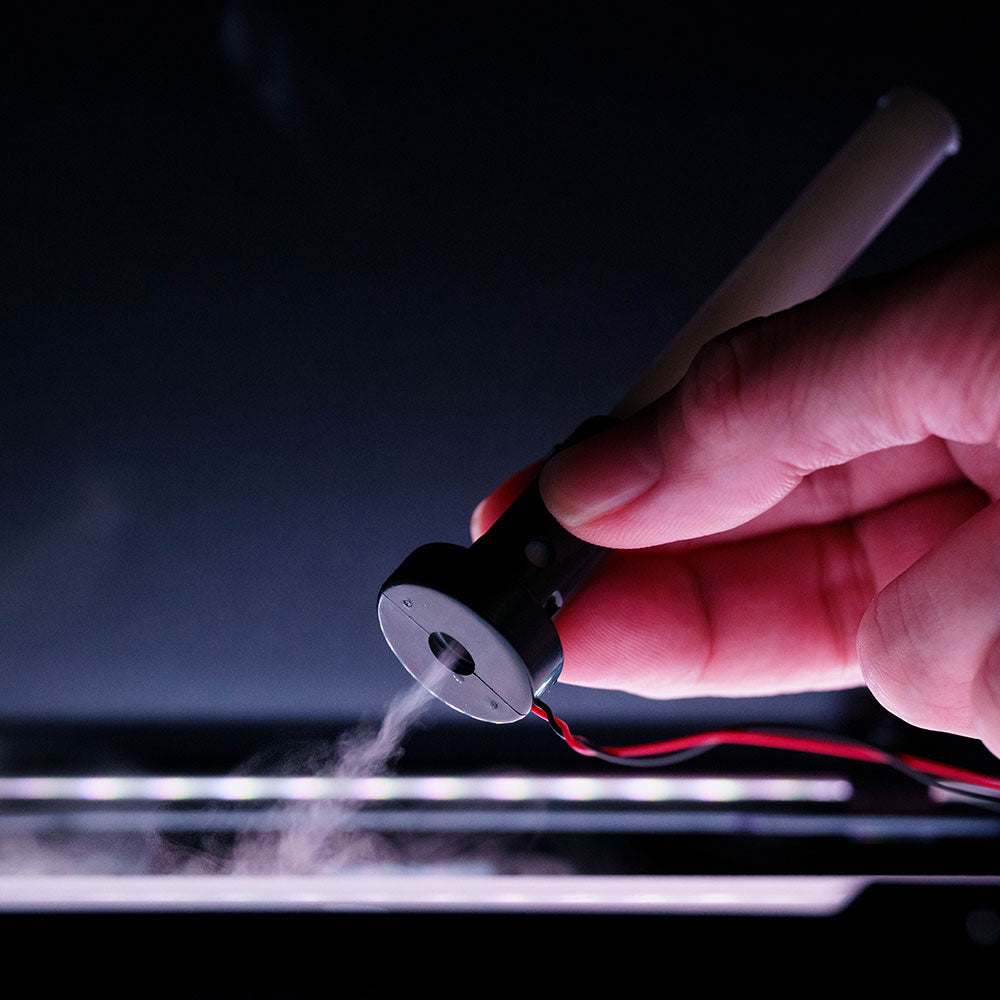

emits mist for about 15 minutes with a single intake of water. It can be hand-held as it can also be generated horizontally.
can also be used to supply water for extended periods of time by dipping the water wick itself in a glass of water or other medium.
Ultrasonic transducers and water wicks are consumables.
If deteriorates, please purchase a new one separately as a single item.
.
complete set
Option Water supply core 3 pcs.
Optional Ultrasonic Transducer
