1:80 Snowfall specification Arm Tree Signal [In-Situ Signal] Main Line & Sub Line Set : Kobo-Nanarokuni 1:80(HO) 1075
Manufactured by Kobo NANA ROKUNI Pre-painted 1/80(HO) person height is about 2cm size
Workshop Einarokuni full scratch structure
Main line size: approx. W 24 x D21.5 x H 97 mm (height includes 2mm base plate)
Sub main line size: approx. W 24 x D20 x H 77 mm (height includes 2mm base plate)
The LEDs are CRD controlled. A separate power supply of 3 to 12 VDC is required to light the LEDs.
Installation requires drilling of 4mm diameter holes and a base of 10mm thickness.
Note:The armrest moves in conjunction with the vertical movement of the dead weight can.
Note:The colour tone of the images may vary from the actual product depending on the model and settings of your monitor.
Information edit: Sakatsu Gallery
Brings back memories of looking up from the trackside!

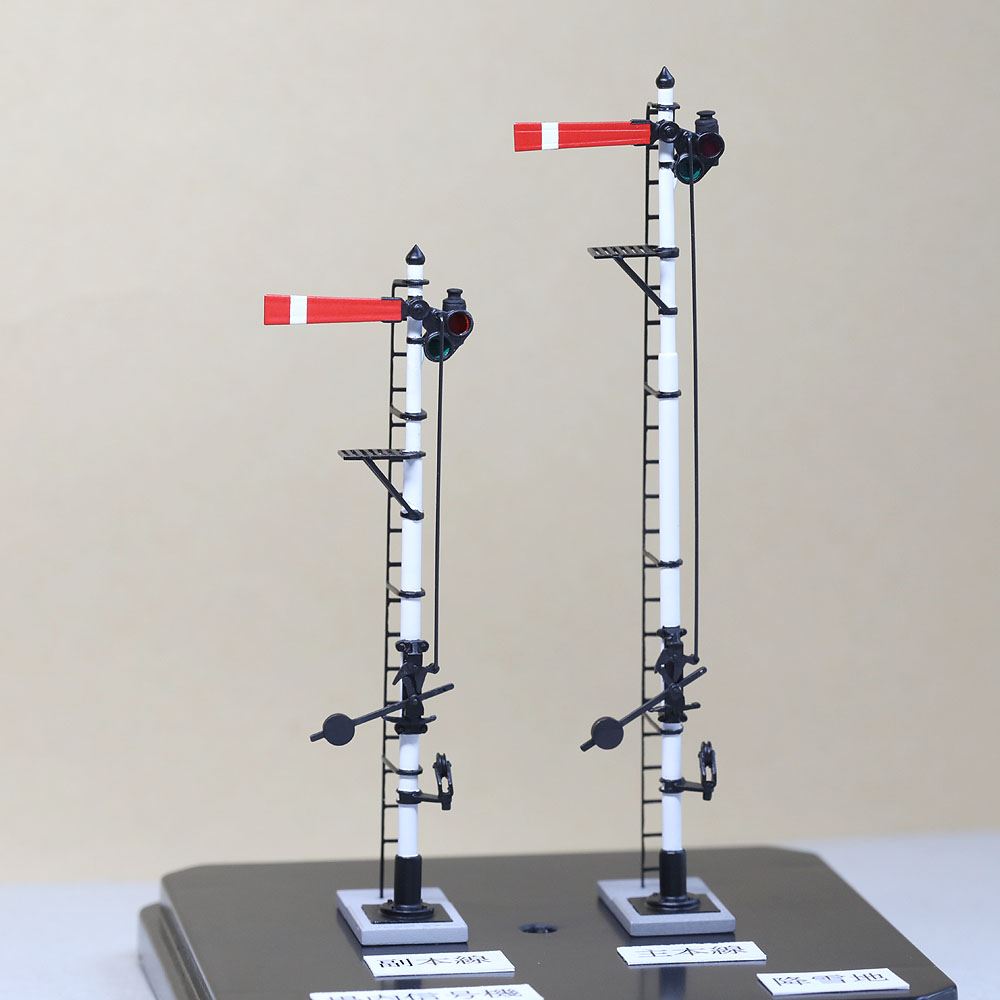

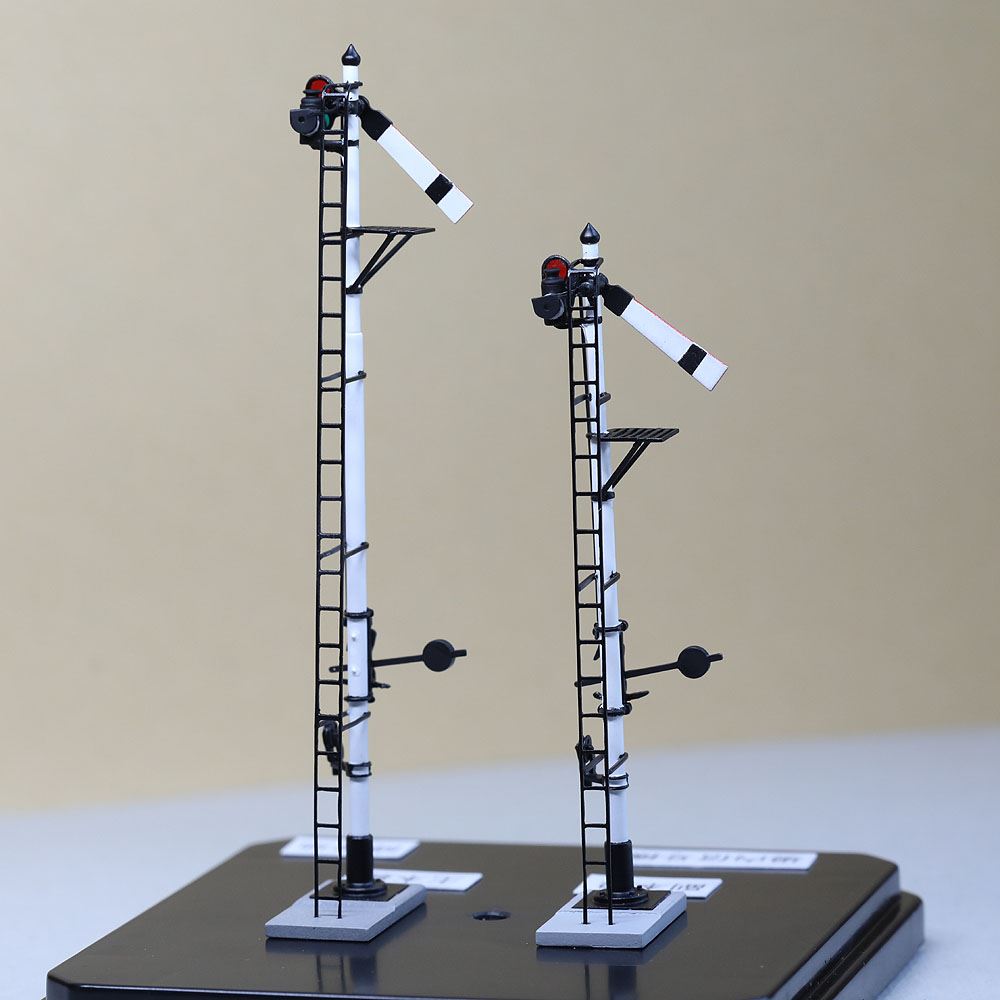

This is a model of an arm-twisting signalling system in which the upward and downward movement of the deadweight rod is mediated by an escape crank, just like the real thing, and the rod can be switched between fixed and counter-position.
This model is a snowfall area type, the position of the dead weight rod is mounted at the top to prevent snow accumulation, and the position of the inspection stand is also extended to the side.
Full scratch work from individual parts by the craftsmanship of Kobo NANA ROKUNI.
The body is made by brass soldering, delicate and strong enough to withstand movement. Note:
The ladder is made from a single piece of 0.4 mm thick wood, with each step cut out to create a crisp, undistorted appearance.
Compared with previous works, the detail of the arm board has been improved and the crank part has been made smaller/ and more three-dimensional.

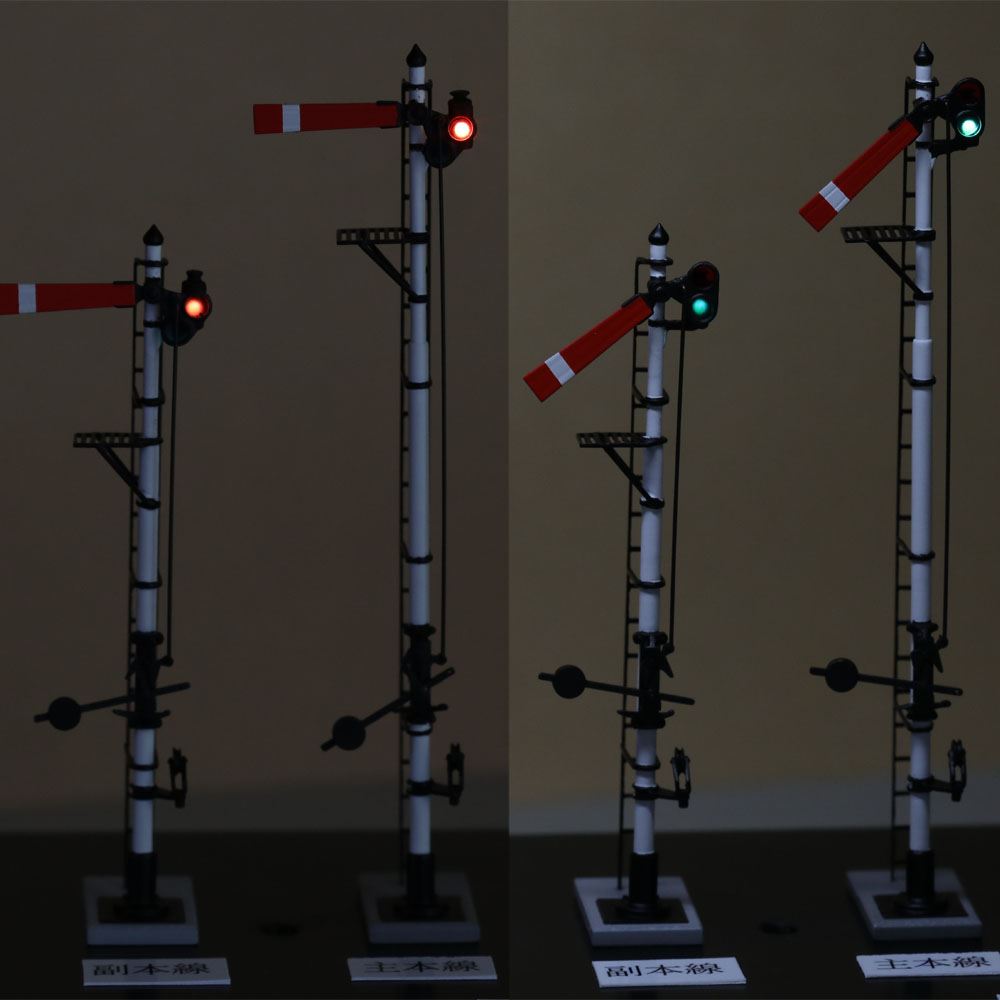

If you have a separate power supply from 3V to 12V DC, the signal will be lit by the light bulb LED and the lens on the armrest.
Note: The model is strong enough to be used as a model, but should be handled with care as it is only a model.
(Note: This is a model and should be handled with care.
